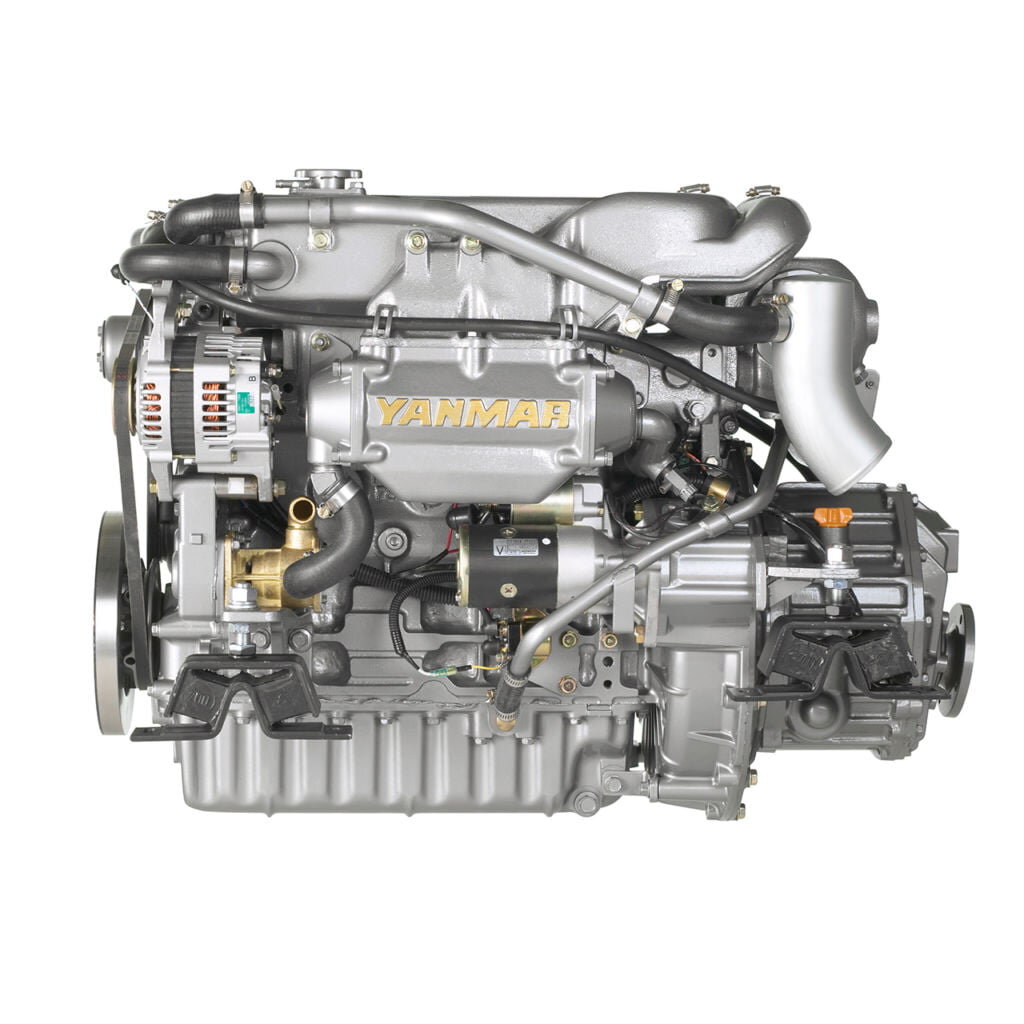

4JH3-DTE Overview
Specifications
| Rated Output | 91.9 kW / 125mhp |
| Rated Speed | 3800 rpm |
| Displacement | 1.995 L / 122 cu. in |
| No. of Cylinders | 4 Cylinders |
| Cylinder Bore x Stroke | 84 mm x 90 mm / 3.31 in x 3.54 in |
| Combustion System | Direct Injection, Bosch Distributor Type VE Pump |
| Aspiration | Turbocharged & Intercooled |
| Alternator | 12V - 125A |
| Dry Weight Without Gear | 229 kg / 504.8 Ibs |
| Dimensions | 1001.3 mm x 581 mm x 661 mm |
| Controls | Mechanical |
| Certifications | RCD 1 | EPA Tier 2 | BSO II | EMC | SOLAS |
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: at 15°C =0.842 g/cm³
Technical data according to (ISO 8665) / (ISO3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM35A marine gear
(Dimensions may vary with other gears/ elbow)
