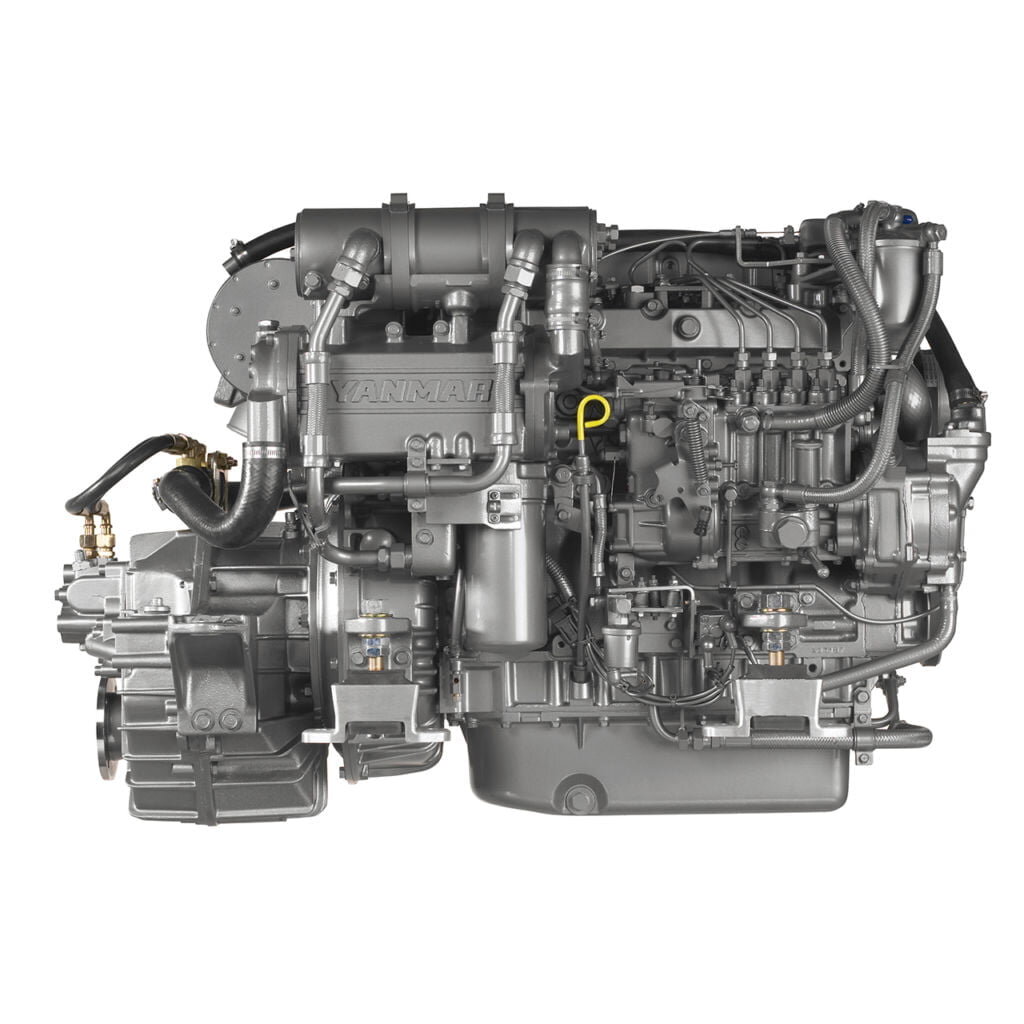

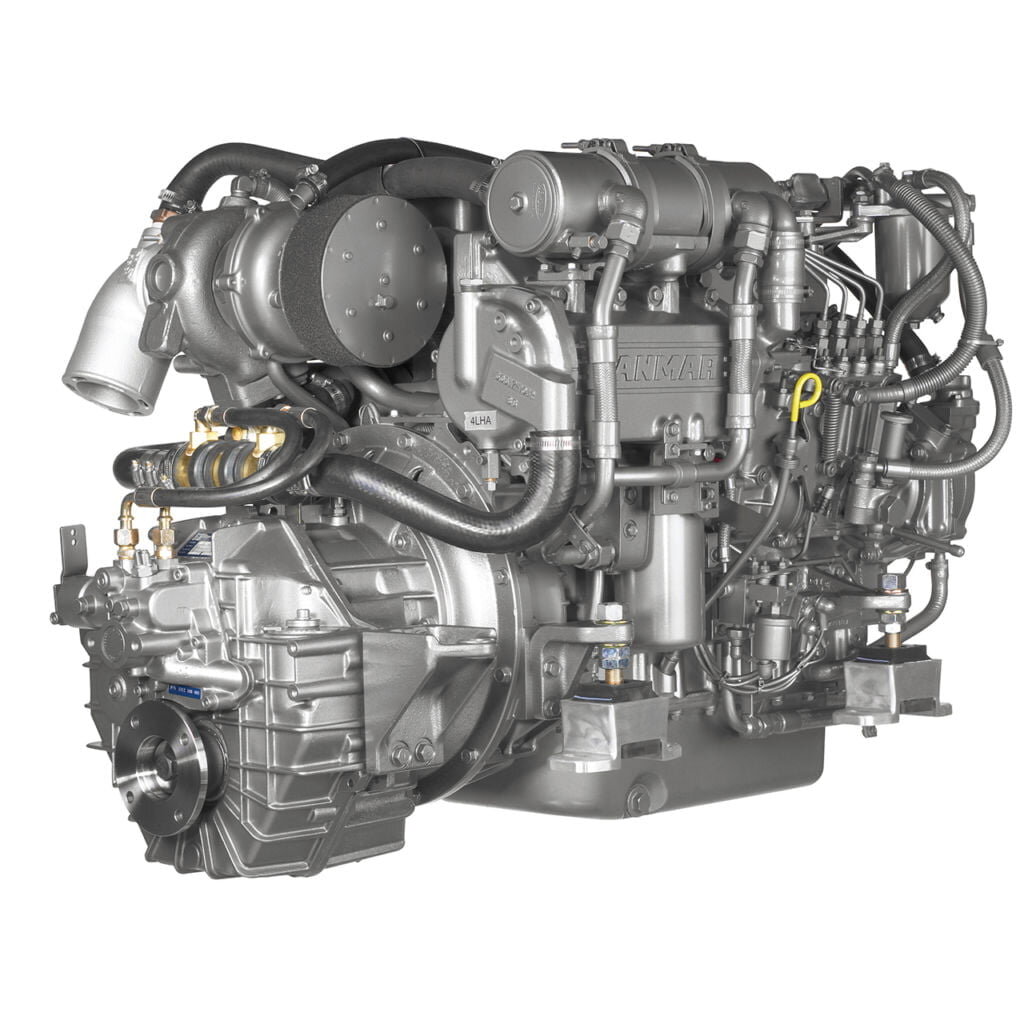

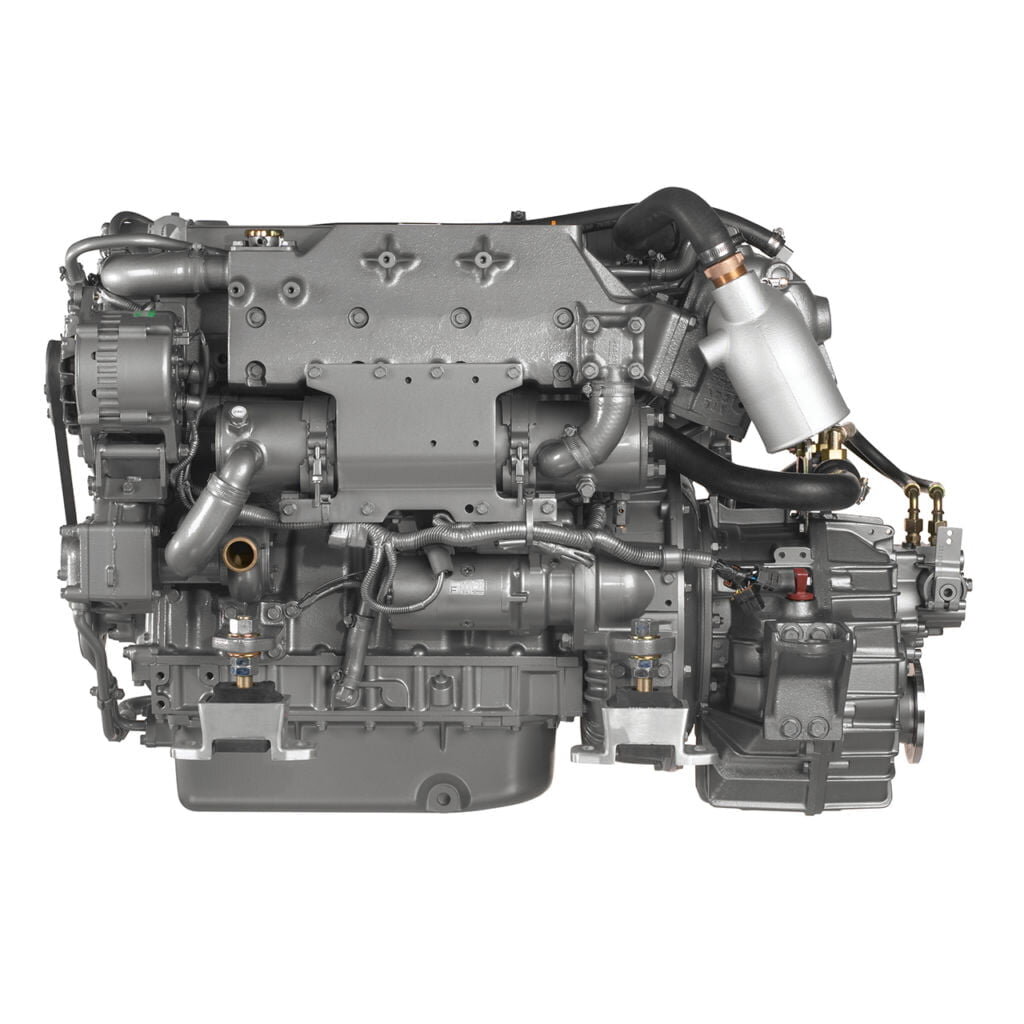

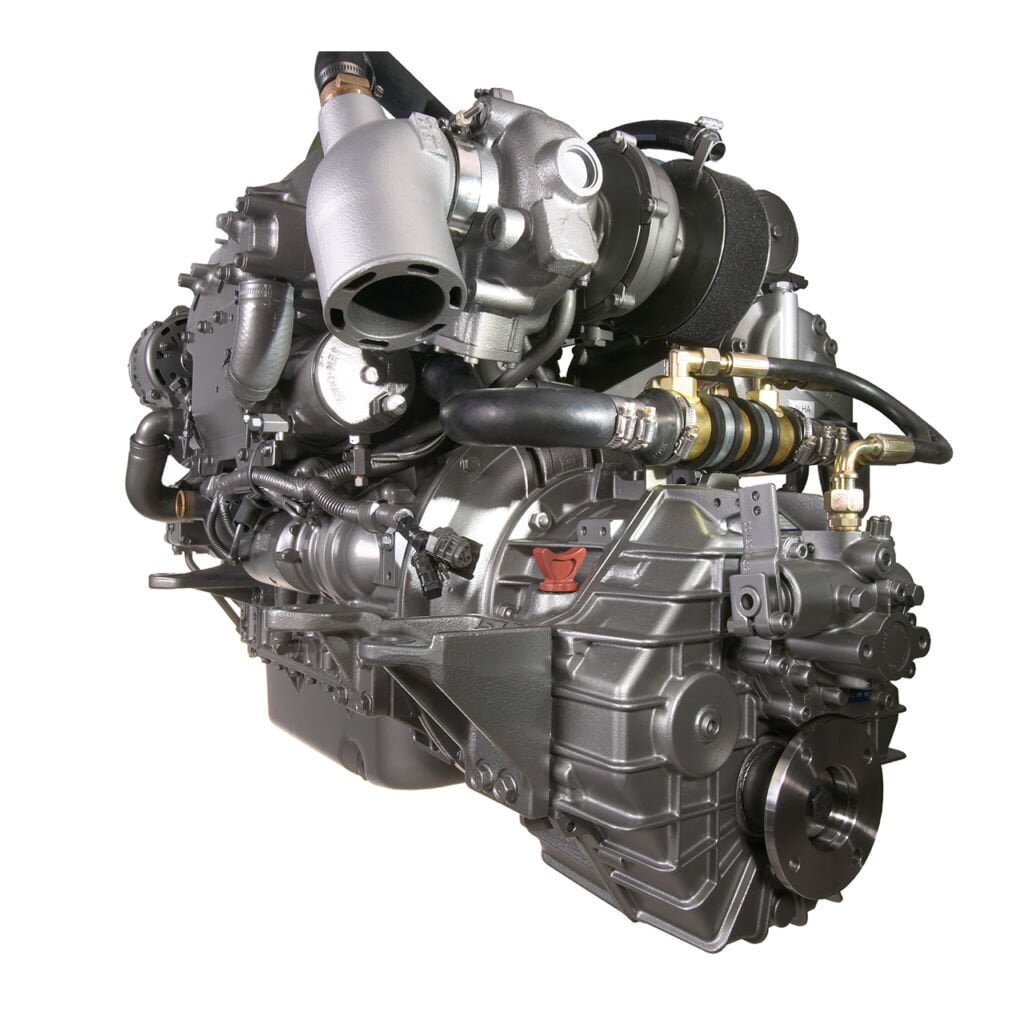

4LHA-HTP Overview
Specifications
| Rated Output | 118 kW / 160 mhp |
| Rated Speed | 3300 rpm |
| Displacement | 3.455 L / 211 cu. in |
| No. of Cylinders | 4 Cylinders |
| Cylinder Bore x Stroke | 100 mm x 110 mm / 3.94 in x 4.25 in |
| Combustion System | Direct Injection, VE Rotary Pump |
| Aspiration | Turbocharged & Intercooled |
| Alternator | 12V - 80A |
| Dry Weight Without Gear | 342 kg / 754 Ibs |
| Dimensions | 1131 mm x 719 mm x 811 mm |
| Controls | Mechanical |
| Certifications | RCD 1 | BSO II | EMC | SOLAS | |
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: at 15°C =0.842 g/cm³
Technical data according to (ISO 8665) / (ISO3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM35A marine gear
(Dimensions may vary with other gears/ elbow)
