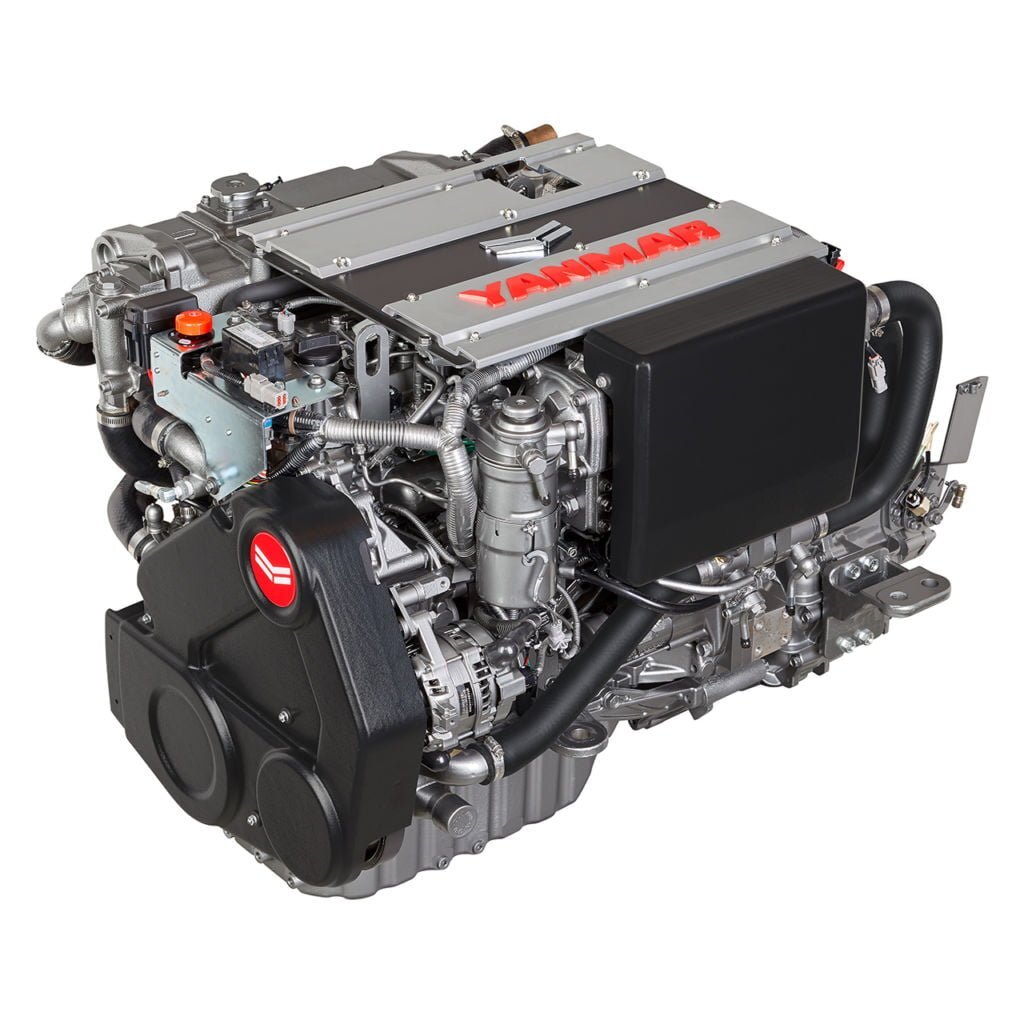

4LV150 Overview

Specifications

Rated Output	110 kW / 150mhp
Rated Speed	3500 rpm
Displacement	2.755 L / 168 cu. in
No. of Cylinders	4 Cylinders
Cylinder Bore x Stroke	92 mm x 103.6 mm / 3.6 in x 4 in
Combustion System	Direct Injection, Denso Common Rail System
Aspiration	Turbocharged & Intercooled
Alternator	12V - 130A
Dry Weight Without Gear	334 kg / 736 Ibs
Dimensions	1151 mm x 755 mm x 772 mm
Controls	Mechanical (optional - VC10 system)
Certifications	RCD 2 \| EPA Tier 3 \| BSO II \| EMC \| EPA Tier 3C \| SOLAS

NOTE:

1 kW = 1.3596 mhp = 1.34102 bhp

Fuel condition: at 15°C =0.842 g/cm³

Technical data according to (ISO 8665) / (ISO3046)

Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)

Length includes KM35A marine gear

(Dimensions may vary with other gears/ elbow)
