8LV350 Overview

Specifications

 Rated Output  257 kW / 350 mhp
 Rated Speed  3800 rpm
 Displacement  4.46 L / 272 cu. in
 No. of Cylinders  8 Cylinders
 Cylinder Bore x Stroke  86 mm x 96 mm / 3.38 in x 3.78 in
 Combustion System  Direct Injection, Denso Common Rail System
 Aspiration  Twin Turbocharged & Intercooled
 Alternator  12V - 180A
 Dry Weight Without Gear  435 kg / 959 Ibs
 Dimensions  1340 mm x 880 mm x 766 mm
 Controls  Electronic
 Certifications  RCD 2 | IMO Tier 2 | EPA Tier 3 | EPA Tier 3C | BSO II | EMC | SOLAS |

NOTE:

1 kW = 1.3596 mhp = 1.34102 bhp

Fuel condition: at 15°C =0.842 g/cm³

Technical data according to (ISO 8665) / (ISO3046)

Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)

Length includes KM35A marine gear

(Dimensions may vary with other gears/ elbow)

Drawings

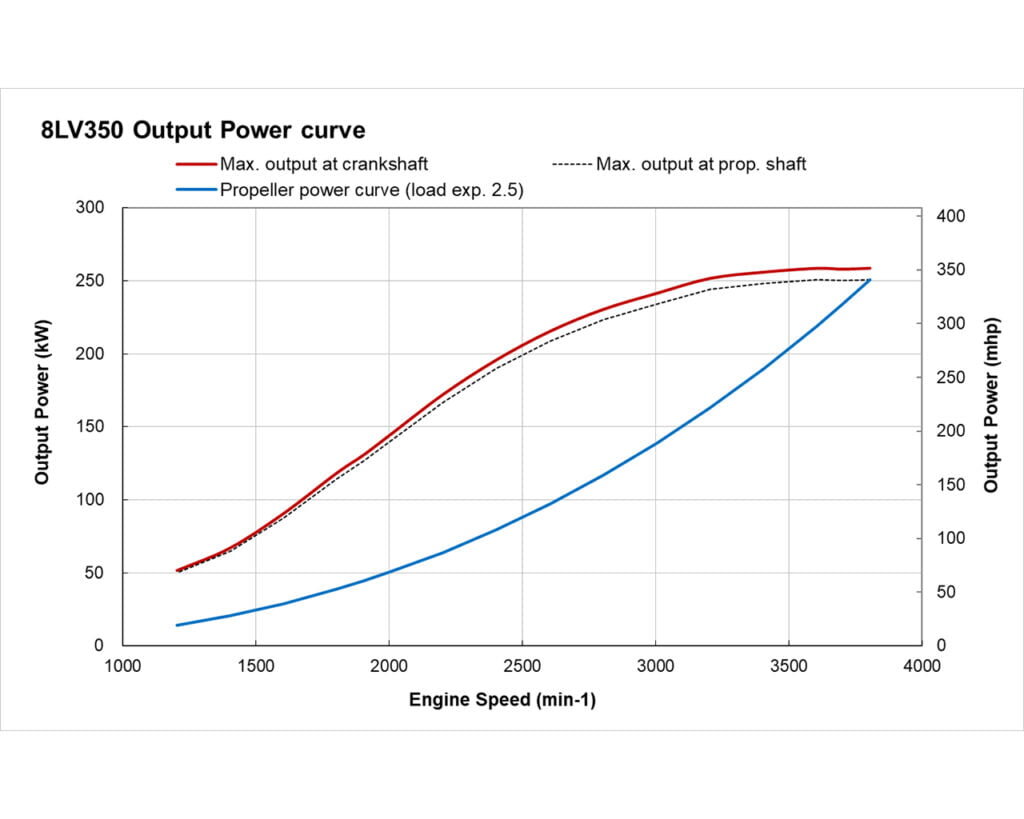

Performance Curves
